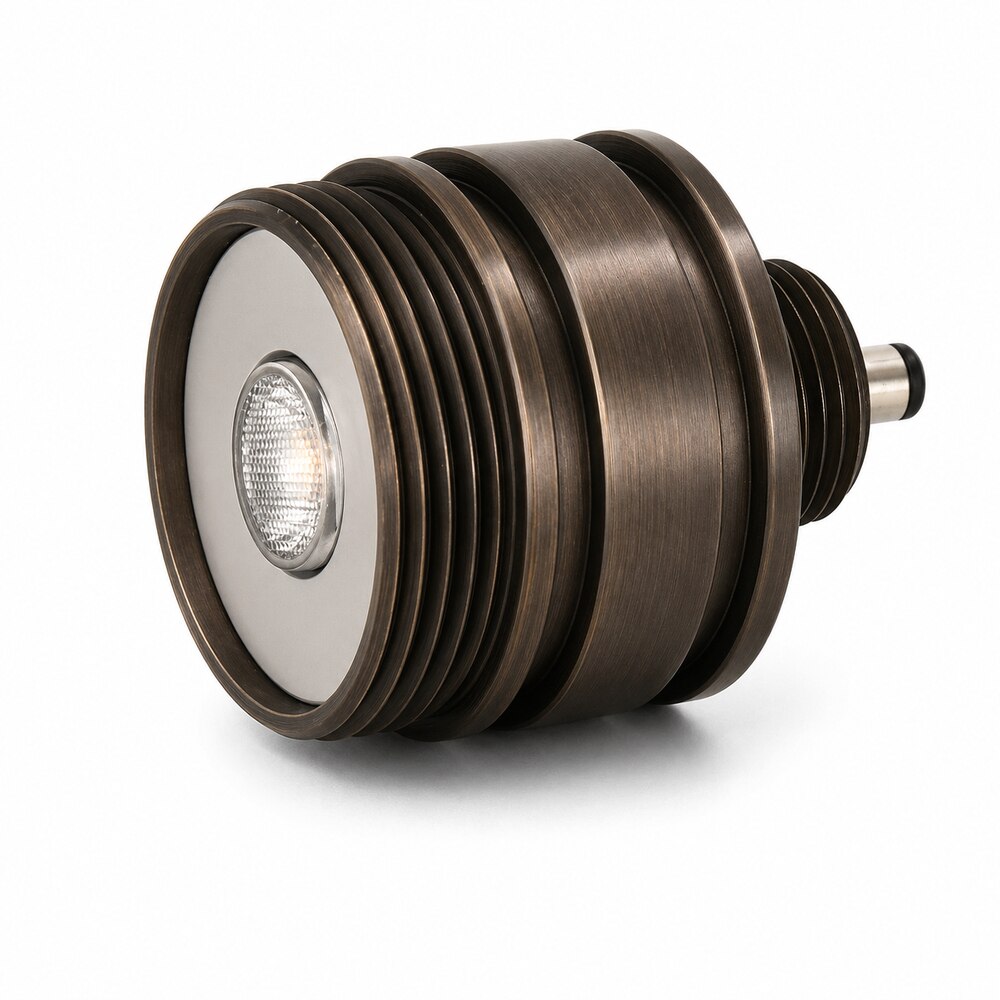

Lumien IP68 Rated Brass Micro Module

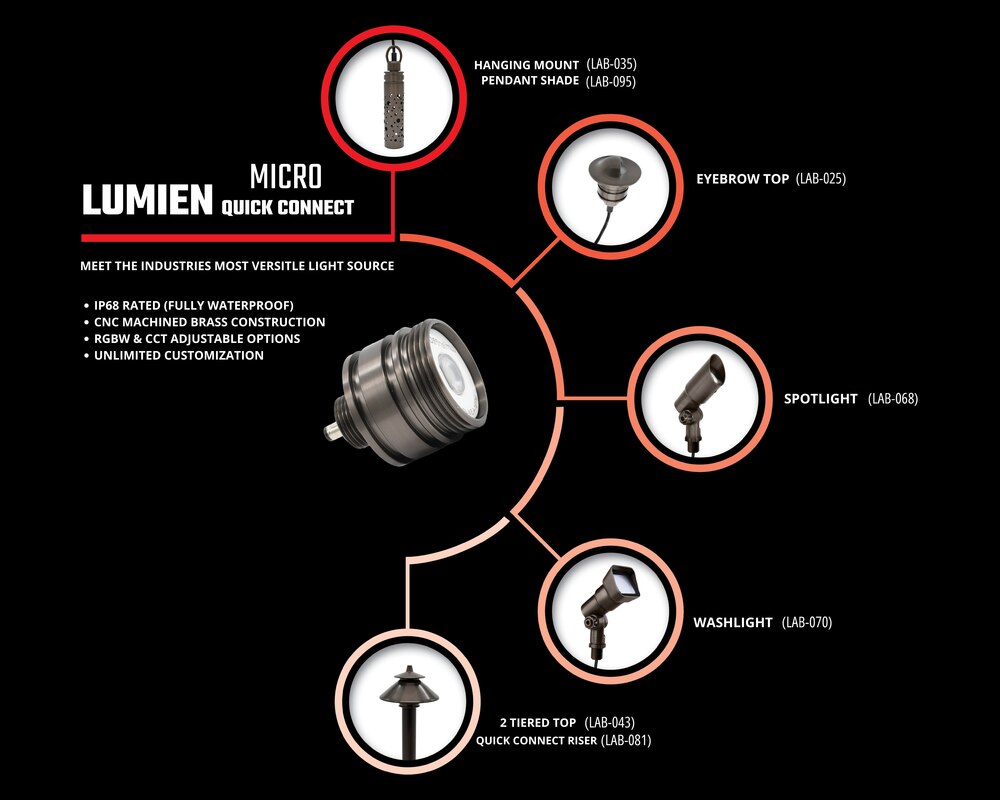

The Micro is the most popular and versatile module Lumien manufacturers. It's IP68 rated, meaning it's fully waterproof. It's CORE Modules (325L or 435L) can be dimmed on both the primarily & secondary side of the transformer, while it's PRO Modules (Kelvin Adjustable or RGBW) are controlled by the LumienPro remote. This Module can be used to power spotlights, wash lights, downlights, area lights, well lights and so much more.
| Specification | M4B1 3.5W | M4B1 5.5W | M7B1 4.5W | M8B1 3W RGB |
|---|---|---|---|---|
| Code | M4B1-3.5W-27K-40-A M4B1-3.5W-27K-60-A M4B1-3.5W-30K-40-A M4B1-3.5W-30K-60-A | M4B1-5.5W-27K-40-A M4B1-5.5W-27K-60-A M4B1-5.5W-30K-40-A M4B1-5.5W-30K-60-A | M7B1-4.5W-40-A M7B1-4.5W-40-BK M7B1-4.5W-60-A | M8B1-3W-27K-40-A M8B1-3W-27K-40-BK M8B1-3W-30K-40-A M8B1-3W-30K-40-BK |
| Construction | Brass | Brass | Brass | Brass |
| Finish | Antique | Antique | Black, Antique | Black, Antique |
| Input Voltage | 10-15V | 10-15V | 10-15V | 10-15V |
| Wattage (Volt Amps) | 3.5W (5.59) | 5.5W (8.66) | 4.5W (6.12) | 3W (4.83) |
| Module Lumens | 316 Lm, 318 Lm, 327 Lm | 428 Lm, 420 Lm, 472 Lm | 317-352 Lm, 283-316 Lm | 27K: 129 Lm, R: 57 Lm, G: — |
| Color Temperature | 2700K, 3000K | 2700K, 3000K | 2700-5700K | 2700-5700K |
| Beam Spread | 40°, 60° | 40°, 60° | 40°, 60° | 40° |
| Lead Wire Length | 6' | 6' | 6' | 6' |
| CRI | 80+ | 80+ | 80+ | 80+ |
| RGB | No | No | No | Yes |
| Dimmable | Primary Dimming | Primary Dimming | Primary Dimming | Primary Dimming |
| Rated Life | 50,000 Hrs | 50,000 Hrs | 50,000 Hrs | 50,000 Hrs |
| Warranty | 10 Years | 10 Years | 10 Years | 10 Years |
