FXL FC Designer Premium In-Grade Light
The FX Luminaire FC Designer Premium In-Grade Light is a premium recessed uplight engineered for illuminating trees, columns, walls, and architectural features while remaining virtually invisible during the day. Featuring a 6 LED integrated light engine, Natural Brass construction, a Round Ring faceplate, and Luxor Zone compatibility, the FC delivers up to 334 lumens of precision illumination with interchangeable optics for maximum design flexibility. Built with heavy-duty brass construction, a sealed in-grade housing, tempered glass lens, and a removable construction sleeve for easy servicing, the FC is designed to provide decades of reliable performance in demanding landscape lighting applications.
| Specification | |
|---|---|
| Model Number | FC Designer Premium In Grade Light |
| Input Voltage | 10 to 15 VAC/VDC |
| Light Source | Integrated Cree LED |
| FX Lumen Output | 6 LED |
| Lumen Output | 334 Lumens |
| Color Temperature | 2700K Standard, 3000K or 3900K with Included Filters |
| CRI | 80+ |
| Beam Spread | 35° Spot Standard, Optional 15°, 25°, 60° and Elliptical Optics |
| Lens | Clear Tempered Glass |
| Housing Material | Die Cast Brass |
| Finish | Natural Brass |

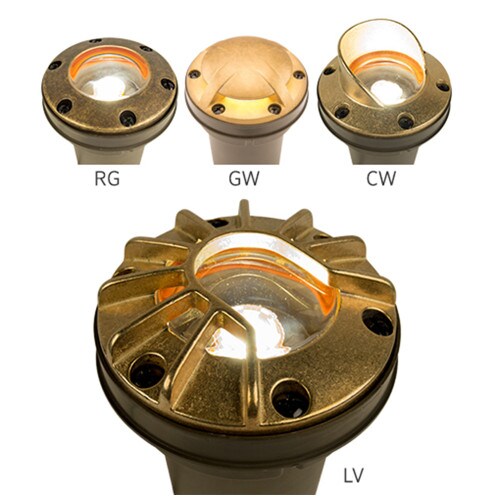

| Faceplate | Round Ring |
| Lead Wire | 10 ft |
| Mounting | Construction Sleeve Included for In Grade Installation |
| IP Rating | IP67 |
| Rated Life | 72,000 Hours L70 |
| Dimming | Phase and PWM Dimmable |
| Luxor Options | Zone |
| Applications | Trees, Palms, Walls, Columns, Architectural Features, Landscape Accent Lighting and In Grade Uplighting |
| Warranty | 10 Year Limited Warranty |
