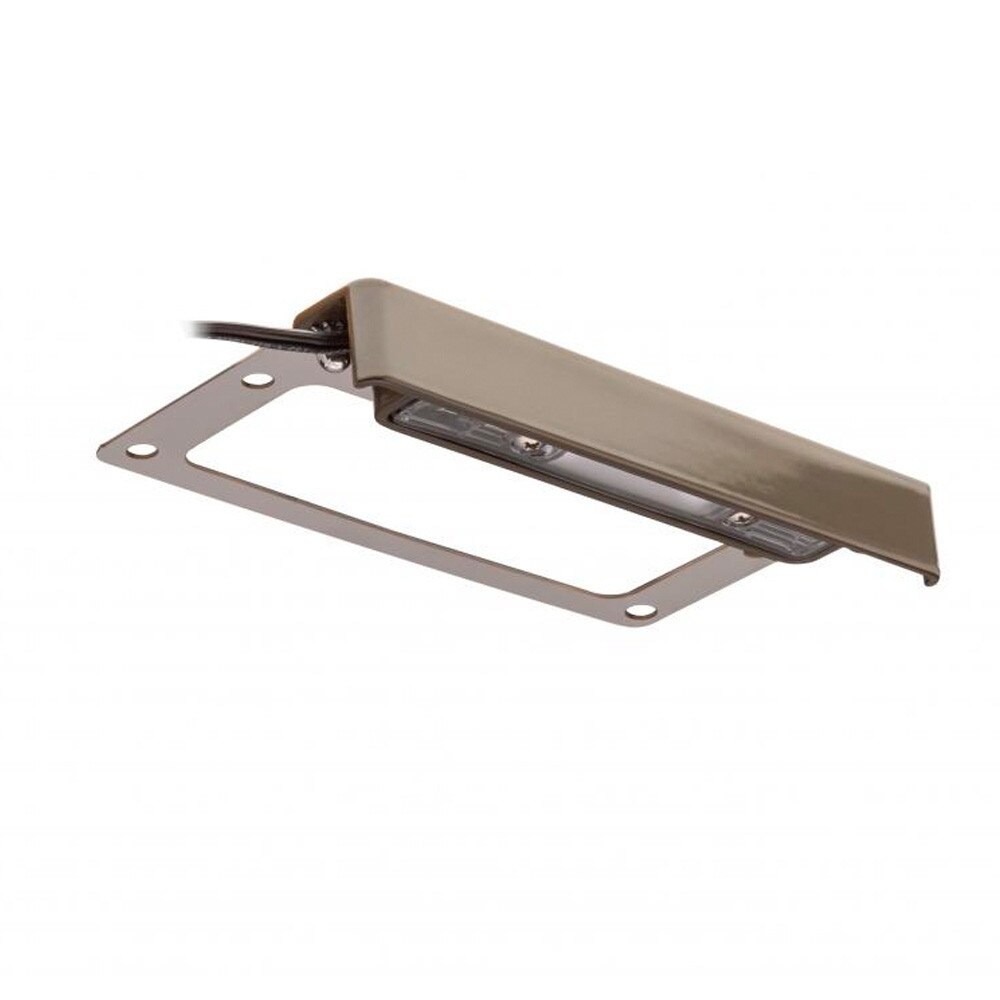

FXL LF Standard Ledge Light
The FX Luminaire LF Designer Wall Light is a premium under-cap hardscape fixture engineered to deliver smooth, glare-free illumination for retaining walls, seat walls, steps, and outdoor living spaces. Its innovative modular mounting system allows installation beneath capstones, railings, and even existing construction, making it one of the most versatile hardscape fixtures in the FX Luminaire lineup. This configuration features the 1 LED integrated light engine and is available in Bronze Metallic, Desert Granite, or Natural Brass finishes. Constructed from die-cast brass with premium faceplate options and stainless steel hardware, the LF offers outstanding durability, integrated Luxor® compatibility, phase dimming, and a 72,000-hour rated life for dependable long-term performance.

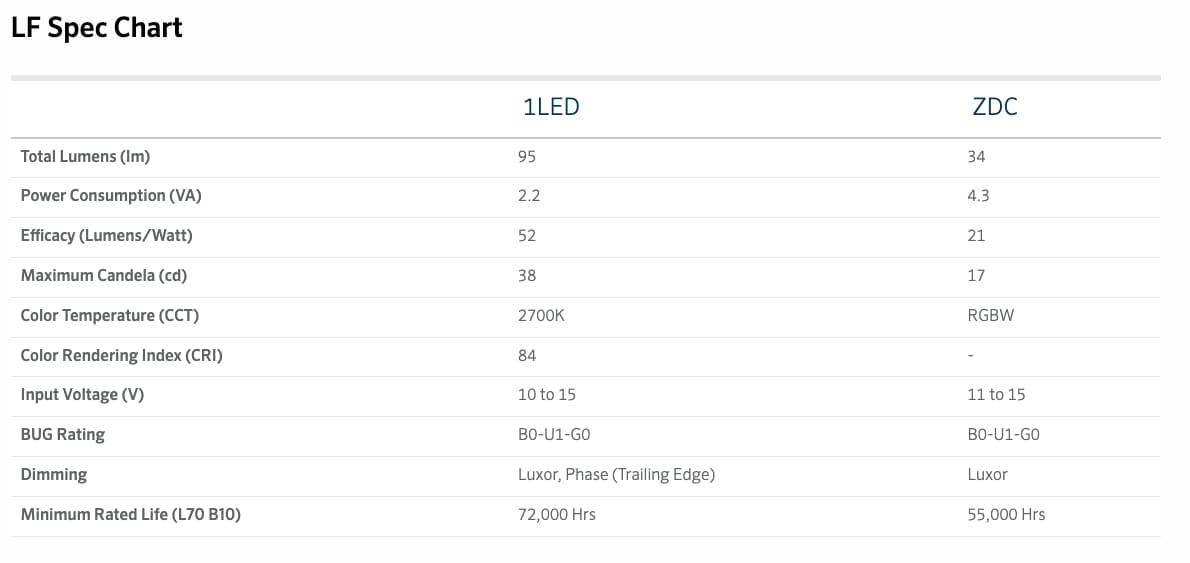

| Specification | |
|---|---|
| Model Number | LF Designer Wall Light |
| Input Voltage | 10 to 15 VAC/VDC |
| Light Source | Integrated LED |
| FX Lumen Output | 1 LED |
| Lumen Output | 95 Lumens |
| Color Temperature | 2700K Standard, 3000K or 4000K with Included Filters |
| CRI | 84 |
| Beam Spread | 100.7° Vertical × 107.0° Horizontal |
| Lens | Frosted Polycarbonate |
| Housing Material | Die Cast Brass Housing with Stainless Steel Hardware |
| Finish | Bronze Metallic, Desert Granite or Natural Brass |
| Lead Wire | 10 ft |
| Mounting | Under Cap Hardscape Mount |
| IP Rating | IP66 |
| Rated Life | 72,000 Hours L70 |
| Dimming | Phase and PWM Dimmable |
| Luxor Options | Zone Standard, Zone/Dim Optional, Zone/Dim/Color Optional |
| Applications | Retaining Walls, Seat Walls, Steps, Outdoor Kitchens, Hardscapes and Architectural Accent Lighting |
| Warranty | 10 Year Limited Warranty |
