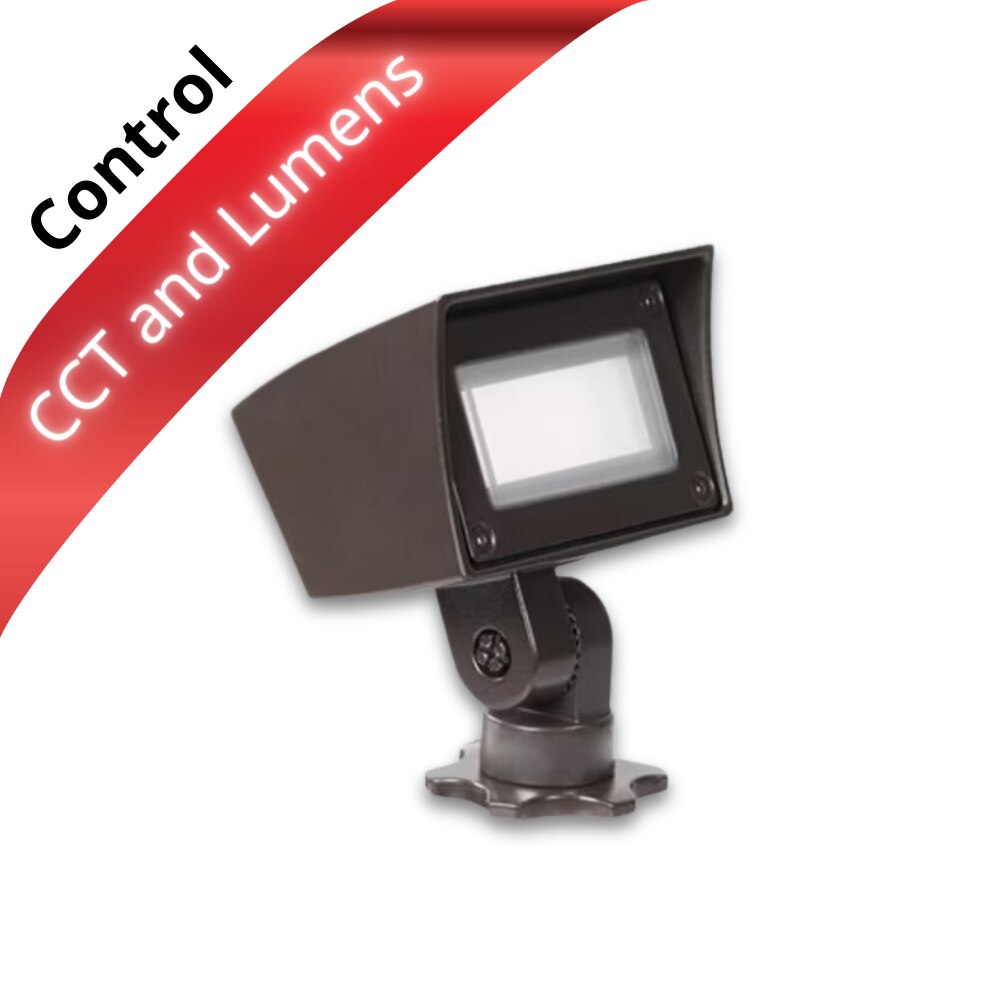

WAC Mini Wall Wash (Dual Control)
The WAC Lighting Mini Wall Wash 12V with Dual CCT is a compact landscape wall wash designed to provide smooth, uniform illumination for walls, hedges, signage, architectural features, and planting beds. Featuring adjustable output from 1W to 8W and 2700K or 3000K selectable color temperature, a single fixture replaces multiple traditional wall wash fixtures while allowing precise on-site brightness adjustment. Available in Black on Aluminum, Bronze on Aluminum, Bronze on Brass, or White on Aluminum, the Mini Wall Wash features a tempered frosted lens for wide, glare-free distribution, an integral brightness control, and corrosion-resistant construction. With an IP66 rating, 60,000-hour rated life, and included mounting stake, the fixture delivers dependable performance in demanding outdoor environments.
| Specification | |
|---|---|
| Model Number | 5121 Mini Wall Wash 12V |
| Input Voltage | 9–15V AC |
| Wattage | Adjustable 1W to 8W |
| Light Source | Integrated LED, 3 Step MacAdam Ellipse |
| Lumen Output | 80 to 420 Lumens |
| Color Temperature | 2700K or 3000K Selectable |
| CRI | 85 |
| Beam Spread | Asymmetrical 70° × 95° |
| Lens | Tempered Frosted Lens |
| Housing Material | Corrosion Resistant Aluminum Alloy or Solid Die Cast Brass |
| Finish | Black on Aluminum, Bronze on Aluminum, Bronze on Brass, or White on Aluminum |
| Lead Wire | 6 ft |
| Mounting | Ground Stake Included, Wall or Ceiling Mount in Any Orientation |
| IP Rating | IP66 |
| Rated Life | 60,000 Hours |
| Dimming | Integral Brightness Control and MLV Dimmable with Remote MLV Dimmer |
| Applications | Retaining Walls, Building Facades, Hedges, Signage, Planting Beds, Landscape Wall Washing |
| Warranty | 10 Years |
