Unique Lighting Direct Burial Transformer

(0)No Reviews yet
SKU: UNQ 360DB 360W Direct Burial Transformer

1 Available

Select Store to check availability.

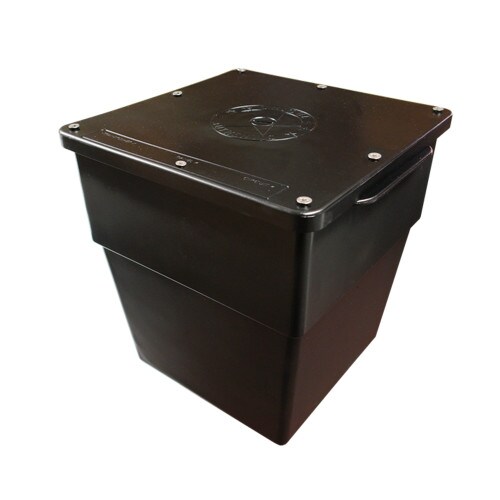

Unique Lighting Systems’ Direct Burial transformer is fully potted and sealed making it completely waterproof. Equipped with primary fuse protection and optional secondary in-line fusing the Direct Burial is ideal for commercial projects or residential applications where concealing the power source is necessary.
Construction: Durable UV resistant composite box. Suitable for direct burial. Agency approval as “SUITABLE FOR GROUND MOUNTED RECESSED.”;; Core: Engineered single core design with precision grain-oriented steel laminations. High temperature glass-impregnated nylon bobbin and solid copper mag wire. To ensure robust construction each output tap is welded to the mag wire for optimum connectivity.;; Primary Protection: Replaceable 3AG Time Delay (glass slow-blow fuse).;; Output Terminal: Each DB includes ready to wire color coded 10 gauge output wire lead.;; Power Cord: Unit must be hardwired.;; Electrical Requirements: Available power ratings 310, 360, 500, 600, 840 and 1120 Watts. Primary voltage is 120 volts, secondary voltage varies from 12V-22V output. See individual models for exact output leads.;; Finish: Black UV resistant composite box standard.;; Warranty: Black UV resistant composite box standard.;;
