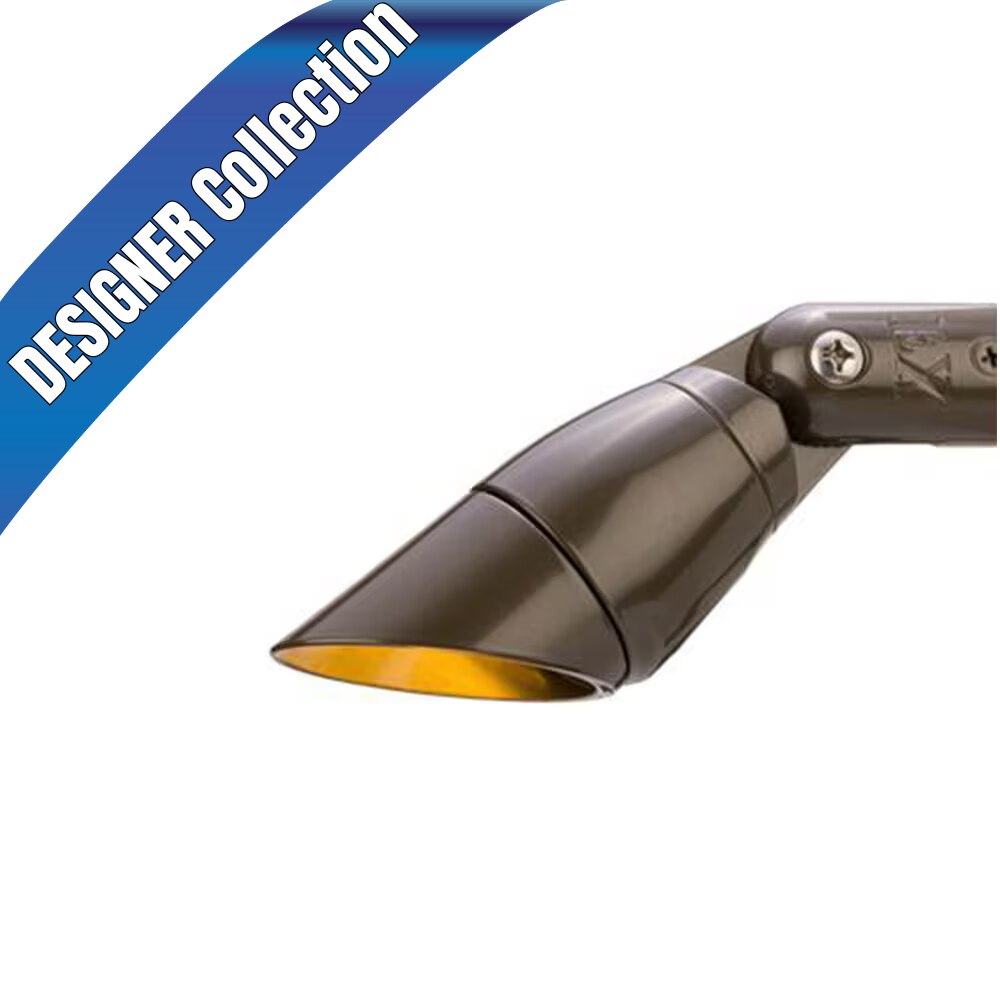

FXL QT Designer Base Down Light

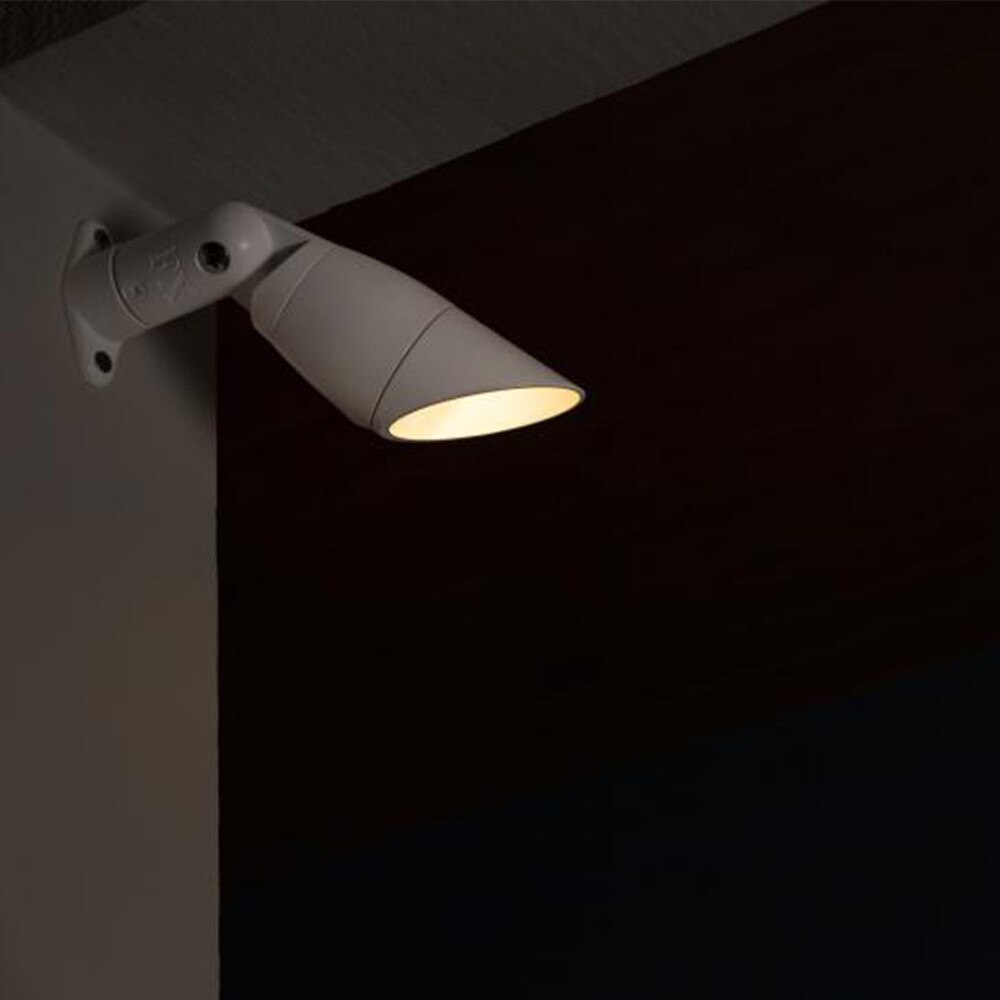

The FX Luminaire QT Designer Down Light is the smallest directional down light in the FX Luminaire lineup, making it ideal for mounting in tight spaces such as pergolas, gazebos, arbors, eaves, and architectural details. Featuring a compact die-cast aluminum housing with a durable two-layer marine-grade anodized finish, the QT delivers reliable illumination while remaining virtually hidden from view. This configuration includes a 1 LED integrated light engine and Bronze Metallic finish. Compatible with the Luxor lighting system, the QT offers zoning or optional zoning and dimming, interchangeable beam optics, replaceable color temperature filters, and a 50,000-hour rated life, making it an excellent choice for professional landscape and architectural lighting installations.
| Specification | |
|---|---|
| Model Number | QT Designer Down Light |
| Input Voltage | 10 to 15 VAC/VDC |
| Light Source | Integrated LED |
| FX Lumen Output | 1 LED |
| Lumen Output | 79 Lumens |
| Color Temperature | 2700K, 3900K, 4500K or 5200K with Included Filters |
| CRI | 82 |
| Beam Spread | 35° Flood Included, Optional 10°, 20° or 60° Optics |
| Lens | Clear Polycarbonate Lens |
| Housing Material | Die Cast A380 Aluminum with Stainless Steel Hardware |
| Finish | Bronze Metallic |
| Lead Wire | 26 ft |
| Mounting | Mini Mount Included |
| IP Rating | IP66 |
| Rated Life | 50,000 Hours L70 |
| Dimming | PWM and Phase Dimmable |
| Luxor Options | Zone Standard, Zone/Dim Optional |
| Applications | Pergolas, Gazebos, Arbors, Eaves, Entryways, Architectural Down Lighting and Moonlighting |
| Warranty | 10 Year Limited Warranty |
