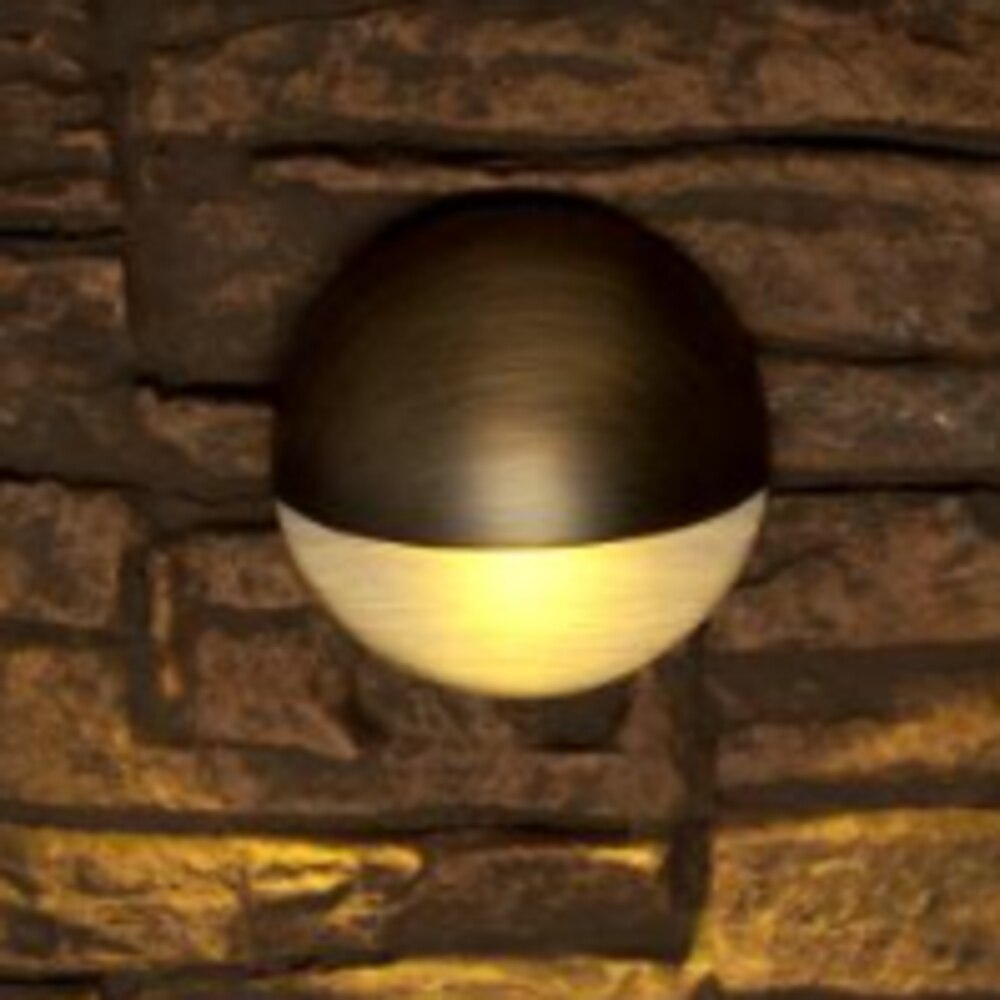

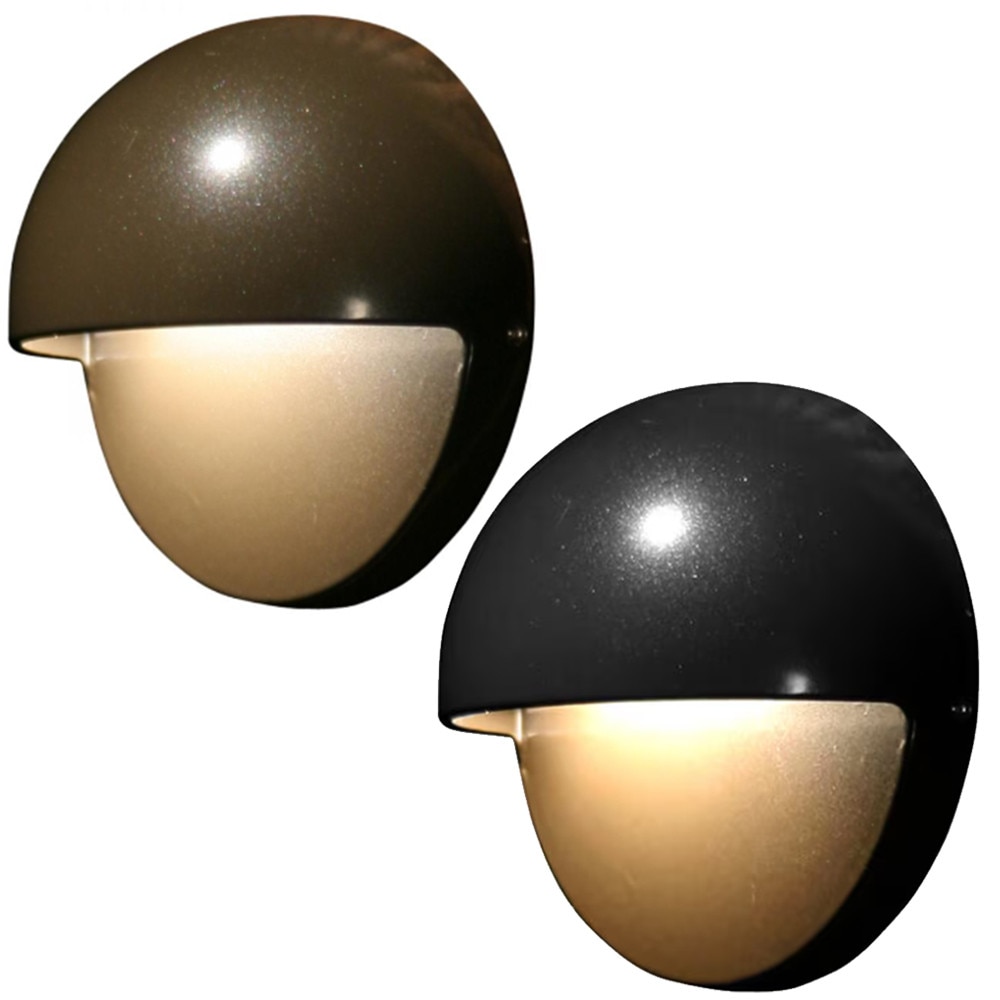

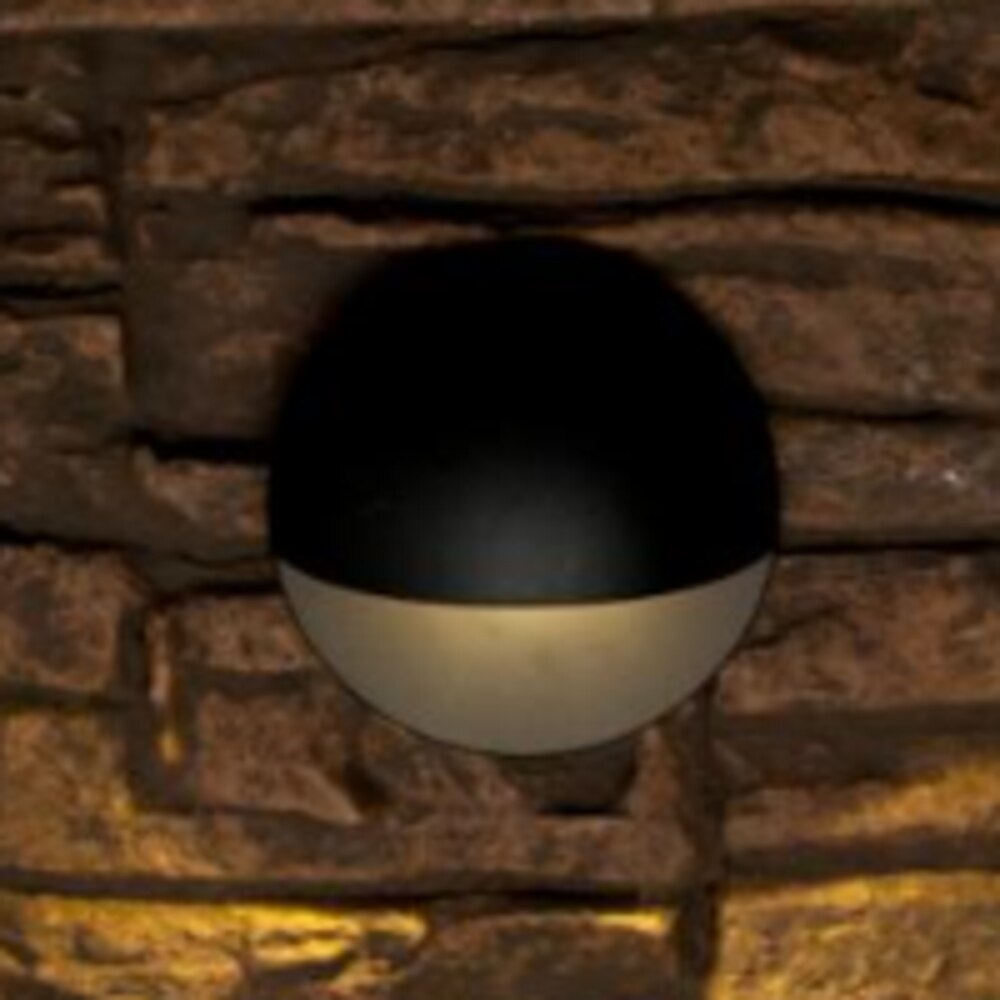

FXL MS Designer Plus LED Wall Light
The FX Luminaire MS Designer Wall Light brings elegant architectural lighting to retaining walls, steps, entryways, and outdoor living spaces with a clean, low-profile design that blends seamlessly into masonry and hardscape applications. Featuring a 1 LED integrated light engine and finished in Bronze Metallic, the MS provides soft, glare-controlled illumination while maintaining outstanding energy efficiency and long service life. Constructed from die-cast aluminum with a marine-grade anodized finish and durable powder coat, the fixture is built to withstand harsh outdoor environments. Compatible with Luxor® technology, the MS includes interchangeable color temperature filters, integrated dimming capability, and a 72,000-hour rated life, making it an ideal choice for premium residential and commercial landscape lighting.

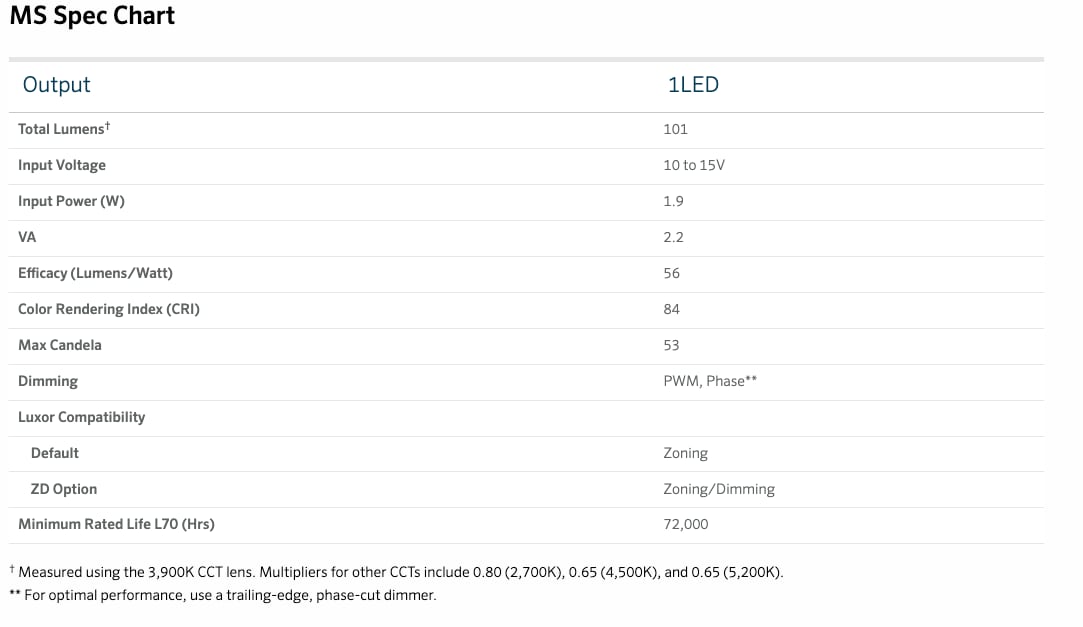

| Specification | |
|---|---|
| Model Number | MS Designer Wall Light |
| Input Voltage | 10 to 15 VAC/VDC |
| Light Source | Integrated LED |
| FX Lumen Output | 1 LED |
| Lumen Output | 101 Lumens |
| Color Temperature | 2700K Standard, 3000K or 4000K with Included Filters |
| CRI | 84 |
| Beam Spread | 68.4° Vertical × 96.7° Horizontal |
| Lens | Frosted Polycarbonate |
| Housing Material | Die Cast A380 Aluminum with Stainless Steel Hardware |
| Finish | Bronze Metallic |
| Lead Wire | 10 ft |
| Mounting | Vertical Wall Mount |
| IP Rating | IP65 |
| Rated Life | 72,000 Hours L70 |
| Dimming | Phase and PWM Dimmable |
| Luxor Options | Zone Standard, Zone/Dim Optional |
| Applications | Retaining Walls, Steps, Entryways, Seat Walls, Hardscapes and Architectural Accent Lighting |
| Warranty | 10 Year Limited Warranty |
